Picture Lab A9: Simple Edge Detection

Section 4.70 Picture Lab A9: Simple Edge Detection

Subsection 4.70.1 Edge Detection

Detecting edges is a common image processing problem. For example, digital cameras often feature face detection. Some robotic competitions require the robots to find a ball using a digital camera, so the robot needs to be able to “see” a ball. One way to look for an edge in a picture is to compare the color at the current pixel with the pixel in the next column to the right. If the colors differ by more than some specified amount, this indicates that an edge has been detected and the current pixel color should be set to black. Otherwise, the current pixel is not part of an edge and its color should be set to white (Figure 1).

🔗

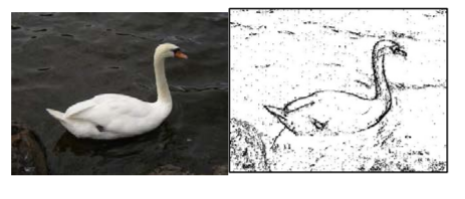

Figure 4.70.1. Original picture and after edge detection
🔗

How do you calculate the difference between two colors? The formula for the difference between two points (x1,y1) and (x2,y2) is

\begin{gather*} \sqrt{(x2 - x1)^{2} + (y2 - y1)^{2}} \end{gather*}

Similarly, the difference between two colors (red1,green1,blue1) and (red2,green2,blue2) is

\begin{gather*} \sqrt{(red2 - red1)^{2} +(green2 - green1)^{2} +(blue2 - blue1)^{2}} \end{gather*}

🔗

The colorDistance method in the Pixel class uses this calculation to return the difference between the current pixel color and a passed color.

🔗

The following method implements this simple algorithm. Notice that the nested for loop stops earlier than when it reaches the number of columns. That is because in the nested loop the current color is compared to the color at the pixel in the next column. If the loop continued to the last column this would cause an out-of-bounds error.

🔗

public void edgeDetection(int edgeDist)
{
     Pixel leftPixel = null;
     Pixel rightPixel = null;
     Pixel[][] pixels = this.getPixels2D();
     Color rightColor = null;
     for (int row = 0; row < pixels.length; row++)
     {
          for (int col = 0; col < pixels[0].length-1; col++)
          {
               leftPixel = pixels[row][col];
               rightPixel = pixels[row][col+1];
               rightColor = rightPixel.getColor();
               if (leftPixel.colorDistance(rightColor) > edgeDist)
                   leftPixel.setColor(Color.BLACK);
               else
                   leftPixel.setColor(Color.WHITE);
          }
     }
}

You can test this with the edgeDetection method below.

🔗

Activity 4.70.1.

Picture Lab A9: Run to see edgeDetection working.

🔗

import java.awt.*;
import java.awt.font.*;
import java.awt.geom.*;
import java.awt.image.BufferedImage;
import java.text.*;
import java.util.*;

/**
 * A class that represents a picture. This class inherits from SimplePicture and
 * allows the student to add functionality to the Picture class.
 *
 * @author Barbara Ericson ericson@cc.gatech.edu
 */
public class Picture extends SimplePicture
{
    ///////////////////// constructors //////////////////////////////////

/** Constructor that takes no arguments */
    public Picture()
    {
        /* not needed but use it to show students the implicit call to super()
         * child constructors always call a parent constructor
         */
        super();
    }

/**
     * Constructor that takes a file name and creates the picture
     *
     * @param fileName the name of the file to create the picture from
     */
    public Picture(String fileName)
    {
        // let the parent class handle this fileName
        super(fileName);
    }

/**
     * Constructor that takes the height and width
     *
     * @param height the height of the desired picture
     * @param width the width of the desired picture
     */
    public Picture(int height, int width)
    {
        // let the parent class handle this width and height
        super(width, height);
    }

/**
     * Constructor that takes a picture and creates a copy of that picture
     *
     * @param copyPicture the picture to copy
     */
    public Picture(Picture copyPicture)
    {
        // let the parent class do the copy
        super(copyPicture);
    }

/**
     * Constructor that takes a buffered image
     *
     * @param image the buffered image to use
     */
    public Picture(BufferedImage image)
    {
        super(image);
    }

////////////////////// methods ///////////////////////////////////////

/**
     * Method to return a string with information about this picture.
     *
     * @return a string with information about the picture such as fileName, height
     *     and width.
     */
    public String toString()
    {
        String output =
                "Picture, filename "
                        + getFileName()
                        + " height "
                        + getHeight()
                        + " width "
                        + getWidth();
        return output;
    }

public void edgeDetection(int edgeDist)
    {
        Pixel leftPixel = null;
        Pixel rightPixel = null;
        Pixel[][] pixels = this.getPixels2D();
        Color rightColor = null;
        for (int row = 0; row < pixels.length; row++)
        {
            for (int col = 0; col < pixels[0].length - 1; col++)
            {
                leftPixel = pixels[row][col];
                rightPixel = pixels[row][col + 1];
                rightColor = rightPixel.getColor();
                if (leftPixel.colorDistance(rightColor) > edgeDist)
                    leftPixel.setColor(Color.BLACK);
                else leftPixel.setColor(Color.WHITE);
            }
        }
    }

/* Main method for testing
     */
    public static void main(String[] args)
    {
        // You can also try temple.jpg
        Picture pict = new Picture("swan.jpg");
        pict.show();
        pict.edgeDetection(12);
        pict.show();
    }
}
====
import static org.junit.Assert.*;

import org.junit.*;

import java.io.*;

public class RunestoneTests extends CodeTestHelper
{
    @Test
    public void test1()
    {
        String target = "public void edgeDetection(";
        boolean passed = checkCodeContains("edgeDetection( method", target);
        assertTrue(passed);
    }
}

🔗

1. Notice that the current edge detection method works best when there are big color changes from left to right but not when the changes are from top to bottom. Add another nested loop that compares the current pixel with the pixel below it and sets the current pixel color to black as well when the color distance is greater than the specified edge distance.

🔗

Activity 4.70.2.

Picture Lab A9: Improve the edgeDetection method by adding another nested loop that compares the current pixel with the pixel below it and sets the current pixel color to black as well, when the color distance is greater than the specified edge distance.

🔗

import java.awt.*;
import java.awt.font.*;
import java.awt.geom.*;
import java.awt.image.BufferedImage;
import java.text.*;
import java.util.*;

/**
     * Constructor that takes a buffered image
     *
     * @param image the buffered image to use
     */
    public Picture(BufferedImage image)
    {
        super(image);
    }

////////////////////// methods ///////////////////////////////////////

/**
     * Add another nested loop that compares the current pixel with the pixel below
     * it and sets the current pixel color to black as well when the color distance
     * is greater than the specified edge distance.
     */
    public void edgeDetection(int edgeDist)
    {
        Pixel leftPixel = null;
        Pixel rightPixel = null;
        Pixel[][] pixels = this.getPixels2D();
        Color rightColor = null;
        for (int row = 0; row < pixels.length; row++)
        {
            for (int col = 0; col < pixels[0].length - 1; col++)
            {
                leftPixel = pixels[row][col];
                rightPixel = pixels[row][col + 1];
                rightColor = rightPixel.getColor();
                if (leftPixel.colorDistance(rightColor) > edgeDist)
                    leftPixel.setColor(Color.BLACK);
                else leftPixel.setColor(Color.WHITE);
            }
        }
    }

import org.junit.*;

import java.io.*;

public class RunestoneTests extends CodeTestHelper
{
    @Test
    public void test1()
    {
        String target = "public void edgeDetection(";
        boolean passed = checkCodeContains("edgeDetection method", target);
        assertTrue(passed);
    }

@Test
    public void test3()
    {
        String target = "for";
        String code = getCode();
        int index = code.indexOf("public void edgeDetection(");
        boolean passed = false;
        if (index > 0)
        {
            code = code.substring(index);
            int num = countOccurences(code, target);
            passed = num >= 4;
        }
        getResults(
                "true",
                "" + passed,
                "Checking that edgeDetection contains 4 (2 nested) for loops",
                passed);
        assertTrue(passed);
    }

@Test
    public void test2()
    {
        String target = "colorDistance";
        String code = getCode();
        int index = code.indexOf("public void edgeDetection(");
        boolean passed = false;
        if (index > 0)
        {
            code = code.substring(index);
            int num = countOccurences(code, target);
            passed = num >= 2;
        }
        getResults(
                "true",
                "" + passed,
                "Checking that edgeDetection calls colorDistance twice",
                passed);
        assertTrue(passed);
    }
}

🔗

Work in groups to come up with another algorithm for edge detection and test it below.
🔗

🔗

🔗

Activity 4.70.3.

Picture Lab A9: Come up with another algorithm for edgeDetection in a method called myEdgeDetection.

🔗

import java.awt.*;
import java.awt.font.*;
import java.awt.geom.*;
import java.awt.image.BufferedImage;
import java.text.*;
import java.util.*;

/**
     * Constructor that takes a buffered image
     *
     * @param image the buffered image to use
     */
    public Picture(BufferedImage image)
    {
        super(image);
    }

////////////////////// methods ///////////////////////////////////////

/**
     * Come up with another algorithm for edgeDetection in a method called
     * myEdgeDetection
     */

/* Main method for testing
     */
    public static void main(String[] args)
    {
        // You can also try temple.jpg
        Picture pict = new Picture("swan.jpg");
        pict.show();
        pict.myEdgeDetection();
        pict.show();
    }
}
====
import static org.junit.Assert.*;

import org.junit.*;

import java.io.*;

public class RunestoneTests extends CodeTestHelper
{
    @Test
    public void test1()
    {
        String target = "public void myEdgeDetection(";
        boolean passed = checkCodeContains("myEdgeDetection( method", target);
        assertTrue(passed);
    }

@Test
    public void test3()
    {
        String target = "for";
        String code = getCode();
        int index = code.indexOf("public void myEdgeDetection(");
        boolean passed = false;
        if (index > 0)
        {
            code = code.substring(index);
            int num = countOccurences(code, target);
            passed = num >= 2;
        }
        getResults(
                "true",
                "" + passed,
                "Checking that myEdgeDetection contains at least 2 for loops",
                passed);
        assertTrue(passed);
    }

@Test
    public void test2()
    {
        String target = "colorDistance";
        String code = getCode();
        int index = code.indexOf("public void myEdgeDetection(");
        boolean passed = false;
        if (index > 0)
        {
            code = code.substring(index);
            int num = countOccurences(code, target);
            passed = num >= 1;
        }
        getResults(
                "true",
                "" + passed,
                "Checking that myEdgeDetection calls colorDistance at least once",
                passed);
        assertTrue(passed);
    }
}

🔗

To use your own images, you can fork this replit.com Swing project

https://replit.com/@BerylHoffman/Picture-Lab

or this alternative replit.com project

https://replit.com/@jds7184/PictureLab

(click output.jpg to see the result) or download the project files form replit to your own IDE.

🔗
