Section 5.2 For loops

While the while loop is all we need to be able to provide the repetition component required by any algorithm, it’s a little bit primitive. It has it’s uses but the real workhorse loop in Java is the for loop.
🔗
The for loop really shines when writing counting loops, those loops where we know before the loop starts exactly how many times the body will run.
🔗
If you took AP CSP with a block programming language like Snap! you almost certainly used a for loop block like the one shown below. It is a bit more limited than a Java for loop but in simple cases, such as shown on the right below, they are essentially the same.
🔗

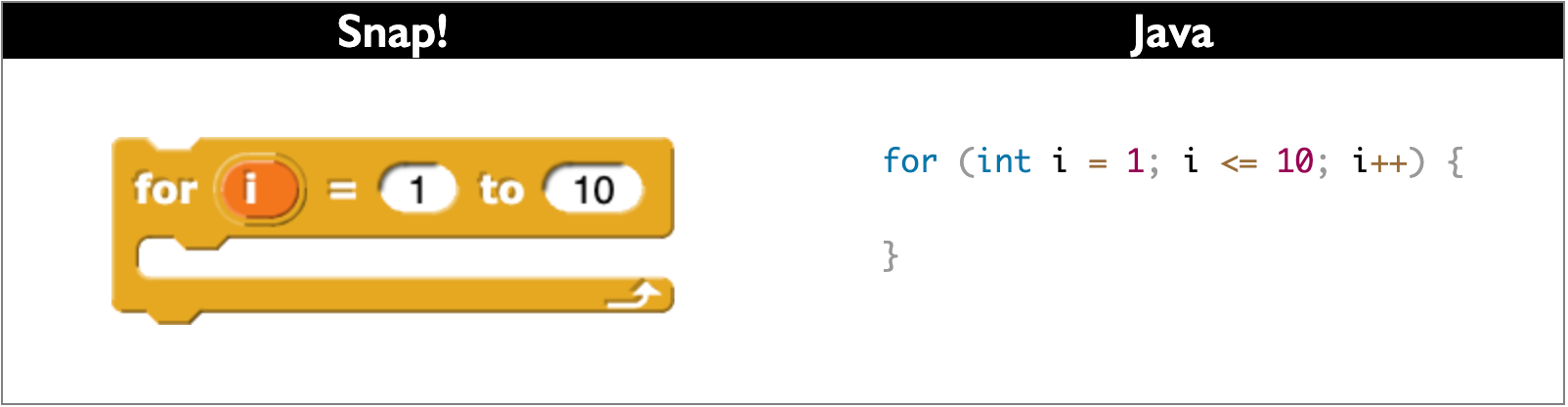

Figure 5.2.1. Comparing Snap! and Java for loops.
🔗

Subsection 5.2.1 Capturing the counting loop pattern

Remember the three step process we went through in the previous section for building a counting while loop?
🔗
  1. Initialize the loop variable
    🔗
  2. Test the loop variable
    🔗
  3. Update the loop variable
    🔗
🔗
The purpose of a for loop is to provide a structure that gives us an easy way to put all three of those parts into the loop header instead of having to remember to initialize the loop variable before the loop and to remember to update the loop variable before the end of the body the way we have to do in a while loop.
🔗
The basic structure looks like this:
🔗
for (initializer; condition; updater) {
   body
}
So instead of a single boolean condition as we have in a while loop, the stuff in parentheses is a bit more complicated: three parts separated by semicolons (;).
🔗
Here is a control flow diagram for a for loop. If you compare this to the flow chart for of a while loop from in the previous section, you’ll see that the main difference is that some parts that weren’t explicitly part of the while loop now get their own nodes in the chart.
🔗
Figure 5.2.2. Control flow in a for loop
🔗
The first item in the parentheses of the for loop header is, the initializer is a single statement that initializes the loop variable. Usually it also declares the variable, like int i = 0. As you can see from the flow chart, the initializer runs just once at the beginning of the loop.
🔗
After the initializer comes the condition, a boolean expression that acts just like the condition in a while loop; as long as it is true the loop body executes. When it is true the program proceeds to the body. When the condition is false we leave the loop and go to whatever comes after it in the program.
🔗
The final item in parentheses, the updater, is a statement that, as the flow chart shows, runs immediately after the body. Its job is to update the loop variable before control loops back to the condition.
🔗

Note 5.2.3.

Two of the most common ways to use a for loops is to count from 0 up to an number (using <) or count from 1 to the number including the number (using <=). Remember that if you start at 0 use <, and if you start at 1, use <=. The two loops below using these two patterns both run 10 times. The variable i (for index) is often used as a counter in for-loops.
🔗
// These loops both run 10 times

// If you start at 0, use <
for (int i = 0; i < 10; i++) {
   System.out.println(i);
}

// If you start at 1, use <=
for (int i = 1; i <= 10; i++) {
   System.out.println(i);
}
🔗
🔗

Subsection 5.2.2 Equivalence of for and while loops.

You may be thinking that there doesn’t seem to be anything you can do with a for loop that you can’t do with a while loop. And you’d be right. In fact it is completely straight forward to translate between the two.
🔗

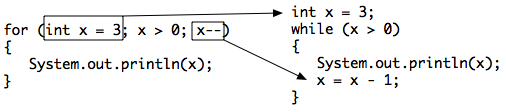

Figure 5.2.4. Showing how a for loop maps to a while loop
🔗
For a very good walkthrough of how for and while loops are equivalent, watch the following video which compares a while loop and for loop line by line.
🔗
So why have both kinds of loops? And which should we use when? Since anything we can write with one, we can write with the other, it really comes down to convenience and expressing our intent.
🔗
The advantage of the for loop is that we can see at a glance, by looking at the loop header the overall structure of the loop: where the loop variable starts, what the loop’s condition is, and how the loop variable changes on each iteration of the loop. So when a loop is simple and fits into the pattern of a basic counting loop it makes sense to use a for loop. It’s easy to read once you get used to it and it’s a signal that this is just a regular loop.
🔗
The while loop, on the other hand, is infinitely flexible. It’s great, as we saw in the last chapter, for loops where we don’t know how many times the loop is going to execute until we’ve run it. And in even more complex loops where maybe there’s some complicated code to decide how to update the loop variable, or maybe when there are multiple loop variables, trying to fit all that into a for loop header is going to get to complicated. In that case a while loop is a better choice.
🔗

Activity 5.2.1.

Here is a for loop that counts from 1 to 5. Can you change it to count from 2 to 10?
🔗
🔗

Activity 5.2.2.

Here is a while loop that counts from 5 to 10. Run it and see what it does. Can you change it to a for loop? Run your for loop. Does it do the same thing?
🔗
🔗

Activity 5.2.3.

What does the following code print?
🔗
for (int i = 3; i < 8; i++) {
   System.out.print(i + " ");
}
  • 3 4 5 6 7 8
    🔗
  • This loop starts with i equal to 3 but ends when i is equal to 8.
  • 0 1 2 3 4 5 6 7 8
    🔗
  • What is i set to in the initialization area?
  • 8 8 8 8 8
    🔗
  • This would be true if the for loop was missing the change part (int i = 3; i < 8; ) but it does increment i in the change part (int i = 3; i < 8; i++).
  • 3 4 5 6 7
    🔗
  • The value of i is set to 3 before the loop executes and the loop stops when i is equal to 8. So the last time through the loop i is equal to 7.
🔗

Activity 5.2.4.

What does the following code print?
🔗
for (int i = 1; i <= 10; i++) {
   System.out.print(i + " ");
}
  • 3 4 5 6 7 8
    🔗
  • What is i set to in the initialization area?
  • 0 1 2 3 4 5 6 7 8 9
    🔗
  • What is i set to in the initialization area?
  • 1 2 3 4 5 6 7 8 9 10
    🔗
  • The value of i starts at 1 and this loop will execute until i equals 11. The last time through the loop the value of i is 10.
  • 1 3 5 7 9
    🔗
  • This loop changes i by 1 each time in the change area.
🔗

Activity 5.2.5.

How many times does the following method print a *?
🔗
for (int i = 3; i <= 9; i++) {
   System.out.print("*");
}
  • 10
    🔗
  • This would be true if i started at 0 and ended at 9. Does it?
  • How many numbers are between 3 and 9 (including 3 and 9)?
  • Since i starts at 3 and the last time through the loop it is 9 the loop executes 7 times (9 - 3 + 1 = 7)
  • This would be true if i started at 0 and the value of i the last time through the loop it was 8.
🔗
🔗

Subsection 5.2.3 Counting backwards

You can also write forloops that count backwards starting at a big number and decrementing the loop variable until it is some small number, usually 0 or 1. If you want to change a forwards loop into a backwards loop that runs with the same values of the loop variable, just counting down instead of up, all three parts of the loop header must change. For example, the forwards loop on the left which starts at 1 and goes up to 5 has to change to the backwards loop on the right to count down from 5 down to 1.
🔗
for (int i = 1; i <= 5; i++) {
}
Listing 5.2.5. Forwards loop
🔗
for (int i = 5; i > 0; i--) {
}
Listing 5.2.6. Backwards loop
🔗

Activity 5.2.7.

What do you think will happen when you run the code below? How would it change if you changed the initializer to start i’s value at 3? Try the Code Lens button to visualize and trace through this code.
🔗
🔗
The program above prints the words to a song. It initializes the value of the variable i to 5 and then checks if i is greater than 0. Since 5 is greater than 0, the body of the loop executes. Before the condition is checked again, i is decreased by 1. When the value of i is 0 it is no longer greater than 0 and the loop stops executing.
🔗

Activity 5.2.8.

Can you make the loop count by 2s backwards? It should print out 5 3 1? Remember to change all 3 parts of the for loop.
🔗
🔗
🔗

Subsection 5.2.4 Coding Challenge: Turtles Drawing Shapes

Let’s use a for loop to have a Turtle draw different shapes. We encourage you to work in pairs.
🔗
The following code has four methods to draw shapes using a Turtle t passed in as an argument.
🔗
  1. Complete the drawSquare method to use a for loop to have the Turtle t draw a square.
    🔗
    🔗
  2. Complete the drawTriangle method to use a for loop to draw an equilateral triangle. How many times should the loop run? It ran 4 times for a square, so how many for a triangle? What angle should you use for the turns? One way to figure this out is to notice that to complete a shape, all the exterior angles should add up to 360 degrees. So, for a square 4x90 = 360. What angle times 3 will give you 360?
    🔗
    🔗
  3. Complete the drawPentagon method to use a for loop to draw a pentagon (which has 5 sides and looks like a stop sign). What external angle should you use for the turns? Remember they have to add up to 360 degrees after 5 turns.
    🔗
    🔗
  4. Complete the drawPolygon method to use a for loop to draw any polygong with n sides of length pixels given as arguments. Use n in your loop for the number of sides (or the number of iterations). Use pixels for the amount to move forward. Calculate the angle to turn by using a formula that uses n and 360, so that n turns add up to 360 degrees.
    🔗
    🔗
  5. In the main method, call the drawPolygon method to draw a hexagon (6 sides). This method can draw a variety of shapes by just changing the value of the argument n. The power of abstraction! Try drawing other shapes with it. Note that if the turtle runs into walls, it stays there and will mess up the shape, so you may have to move the turtle or go forward smaller amounts.
    🔗
    🔗
🔗

Project 5.2.9.

Complete the methods below with for-loops to draw a square, triangle, pentagon, and then any polygon using a variable n that holds the number of sides. Add 1 more call to the method drawShapes in main. Note that the angles in the turns have to add up to 360.
🔗
🔗
🔗

Subsection 5.2.5 Summary

  • (AP 2.8.A.1) A for loop is a type of iterative statement. There are three parts in a for loop header: the initialization (of the loop control variable or counter), the Boolean expression (testing the loop variable), and the update (to change the loop variable).
    🔗
    🔗
  • (AP 2.8.A.2) In a for loop, the initialization statement is only executed once before the first Boolean expression evaluation. The variable being initialized is referred to as a loop control variable.
    🔗
    🔗
  • (AP 2.8.A.2) The for loop Boolean expression is evaluated immediately after the loop control variable is initialized and then followed by each execution of the increment (or update) statement until it is false.
    🔗
    🔗
  • (AP 2.8.A.2) In each iteration of the for loop, the update is executed after the entire loop body is executed and before the Boolean expression is evaluated again.
    🔗
    🔗
  • (AP 2.8.A.3) A for loop can be rewritten into an equivalent while loop (and vice versa).
    🔗
    🔗
🔗
🔗

Subsection 5.2.6 AP Practice

Activity 5.2.10.

Consider the following code segment.
🔗
int count = 0, sum = 0;
while (count <= 6)
{
    count++;
    if (count % 2 == 0)
    {
        sum += count;
    }
}
System.out.println(sum);
Which of the following code segments will produce the same output as the code segment above?
🔗
I.  int sum = 0;
    for (int count = 0; count <= 6; count++) {
        count++;
        if (count % 2 == 0) {
             sum += count;
        }
    }
    System.out.println(sum);

II. int sum = 0;
    for (int i = 0; i <= 6; i += 2) {
       sum += i;
    }
    System.out.println(sum);

III. int sum = 0;
     for (int j = 7; j > 1; j--) {
        if (j % 2 == 0) {
             sum += j;
        }
     }
     System.out.println(sum);
  • I and II only
    🔗
  • Note that I has an extra count++ at the beginning of the loop body that should be deleted.
  • II and III only
    🔗
  • Correct! In the II, the loop counter increments by 2’s making sure it visits only even numbers and III generates the same sum but backwards.
  • I and III only
    🔗
  • Note that I has an extra count++ at the beginning of the loop body that should be deleted.
  • III only
    🔗
  • This is partially correct.
  • I, II, and III
    🔗
  • Note that I has an extra count++ at the beginning of the loop body that should be deleted.
🔗

Activity 5.2.11.

Consider the following code segment.
🔗
int result = 1;
for (int i = 3; i < 6; i += 2) {
  result *= i;
}
System.out.println(result);
Which of the following best explains how changing the for loop header to for (int i = 4; i <= 6; i += 2) affects the output of the code segment?
🔗
  • The output of the code segment will be unchanged.
    🔗
  • One will multiply odd numbers and the other even numbers.
  • The output will be the same, but the new loop will iterate more times.
    🔗
  • One will multiply odd numbers and the other even numbers.
  • The output will be different, but both versions of the loop will iterate two times.
    🔗
  • Correct! One will multiply 3*5 and the other 4*6.
  • The output will be different, and the new loop will iterate more times.
    🔗
  • The output is different but they both would iterate 2 times.
  • This will cause an error.
    🔗
  • It will not cause an error.
🔗
🔗
You have attempted of activities on this page.
🔗
